Once concrete forms go into the ground, changes get hard fast. That is why a construction survey should happen first. This survey checks the exact layout and height of a project before any forms go in. It gives contractors a clear, correct starting point, based on real measurements instead of guesswork. Skipping this step, or rushing through it, can lead to costly problems once work is already underway.

A construction survey is not just paperwork from the start of a job. It is one of the most useful steps in the whole build. It shapes how smoothly everything else goes after. Here is why it matters so much before the forms go in.

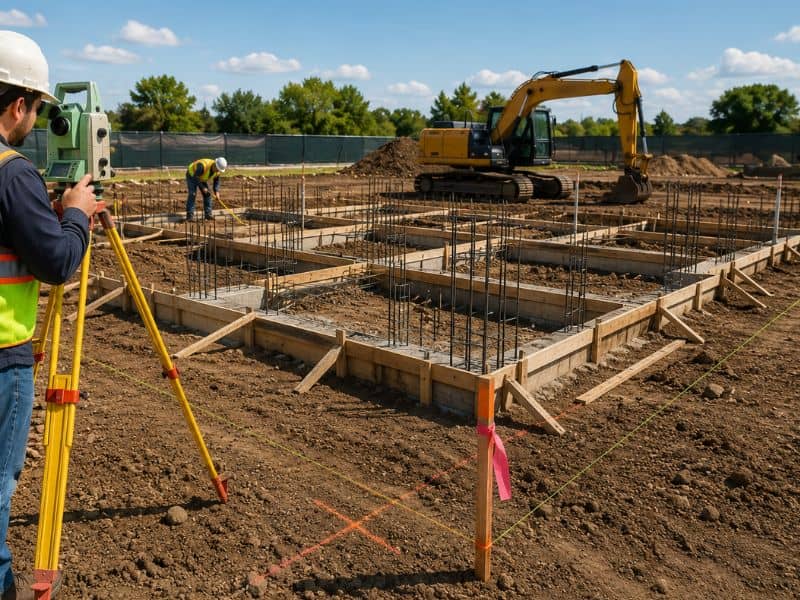

Layout Errors Are Much Harder to Fix After Forms Are Installed

Before any concrete gets poured, the building layout needs to be exactly right. A construction survey checks this layout first. It marks the correct spots for walls, footings, and other key points. This step happens before forms, digging, or steel bars are put in place.

Fixing a layout error later is a much bigger job. Once forms are set and steel is placed, moving anything means tearing out work that is already done. That costs time, money, and extra labor. It can also delay every crew that was set to start right after. Checking the layout early means the crew builds in the right spot the first time. No one has to undo finished work.

Utility Conflicts Can Be Identified Before Construction Begins

A job site often has more going on underground than it looks like from the surface. Water lines, gas lines, and other utilities may run right through a planned building area. Survey data helps contractors compare the planned layout against these utility lines. It also checks for easements and other site features.

Spotting a conflict early makes a huge difference. If a utility line sits right where a footing needs to go, the team can adjust the plan before construction even starts. Waiting until crews are digging to find the same problem often means stopping work. It also means calling in utility companies and losing time on the schedule.

Site Grades Can Affect Form Placement and Foundation Performance

The ground itself is rarely flat, and that matters more than most people think. The height of the ground affects where a foundation sits, how tall a slab needs to be, and how water drains away from the finished building. All of this ties back to the site’s grade.

Checking grade before forms go in gives the crew a chance to plan around it the right way. If elevations get skipped, a slab might end up too low. Water might drain toward the building instead of away from it. The finished floor might not line up with the rest of the design. Checking grades early avoids all of these problems.

Coordinating Multiple Trades Starts With a Verified Survey Layout

A construction site brings together a lot of different crews. Excavation teams, concrete workers, utility installers, and other trades all need to work from the same starting point. A checked survey layout gives everyone that shared reference.

Survey control points act like an anchor for the whole project. Every crew can measure from the same fixed points. No one has to guess or use rough field estimates. This cuts down on small measuring mistakes that can turn into big problems later, especially when several crews work close together. When every crew uses the same layout, the job runs with far fewer conflicts.

Early Survey Verification Helps Keep Construction on Schedule

Construction schedules are tight, and delays can pile up fast. Checking layout accuracy before forms are installed helps stop delays caused by redesigns, failed inspections, or last-minute fixes in the field. Each of these problems can push a schedule back by days or even weeks.

Finding layout or elevation issues before construction begins is much easier than fixing them once work is underway. A quick survey check at the start can keep an entire project on track. It also helps the budget stay on track, since rework and delays almost always cost more than getting things right the first time.

FAQs

Why is a construction survey completed before concrete forms are installed?

A construction survey checks the planned layout and heights before formwork begins. This helps make sure the project starts in the right spot from day one.

Can a construction survey help prevent costly rework?

Yes. Finding layout or height problems before forms are set can lower the chance of tearing out work or rebuilding later in the project.

Does a construction survey verify building elevations?

Yes. Surveyors set up height control points that help contractors build foundations and slabs at the right height.

Who uses the results of a construction survey on a job site?

Contractors, excavation crews, concrete workers, engineers, and project managers all use survey information to plan their work together.

Is a construction survey only needed for large commercial projects?

No. Construction surveys can help homes, businesses, and other projects too, any time accurate layout and height information matters before building begins.
